SPECIFICATIONS

Brand Name: Holyiot

Camera Equipped: No

Communication method: Bluetooth-Compatible

High-concerned chemical: none

Model Number: 22022

Origin: Mainland China

State of Assembly: Ready-to-Go

The 22022 motion attitude sensor combines a compact design with high-precision 9-axis sensors for object monitoring. Bluetooth for 22022 motion posture sensor ® LE 5.0 technology, combined with nRF52 SoC and 9-axis sensors, detects the activity of objects, converting the detected motion signals into digital signals and sending them to the background for collection through Bluetooth.

Feature

• High accuracy and stability

• Bluetooth 5.0

• Long distance radio transfer

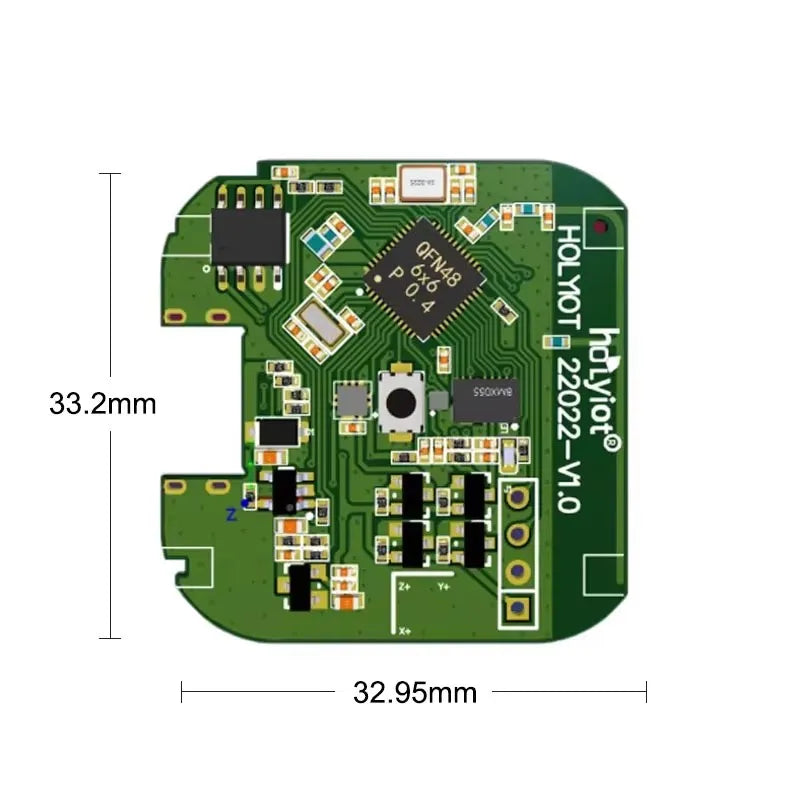

• On-board highly sensitive acceleration, gyroscope and magnetometer sensor

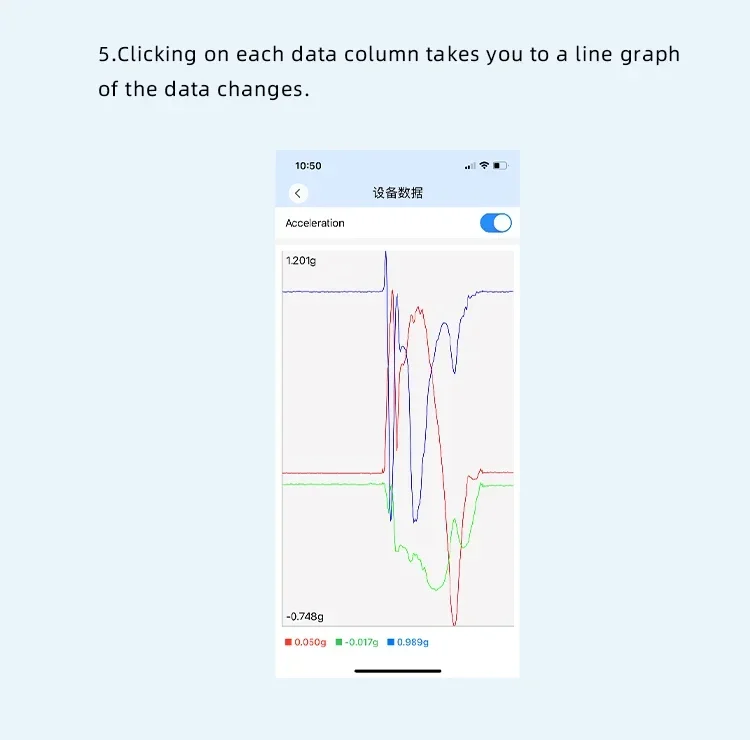

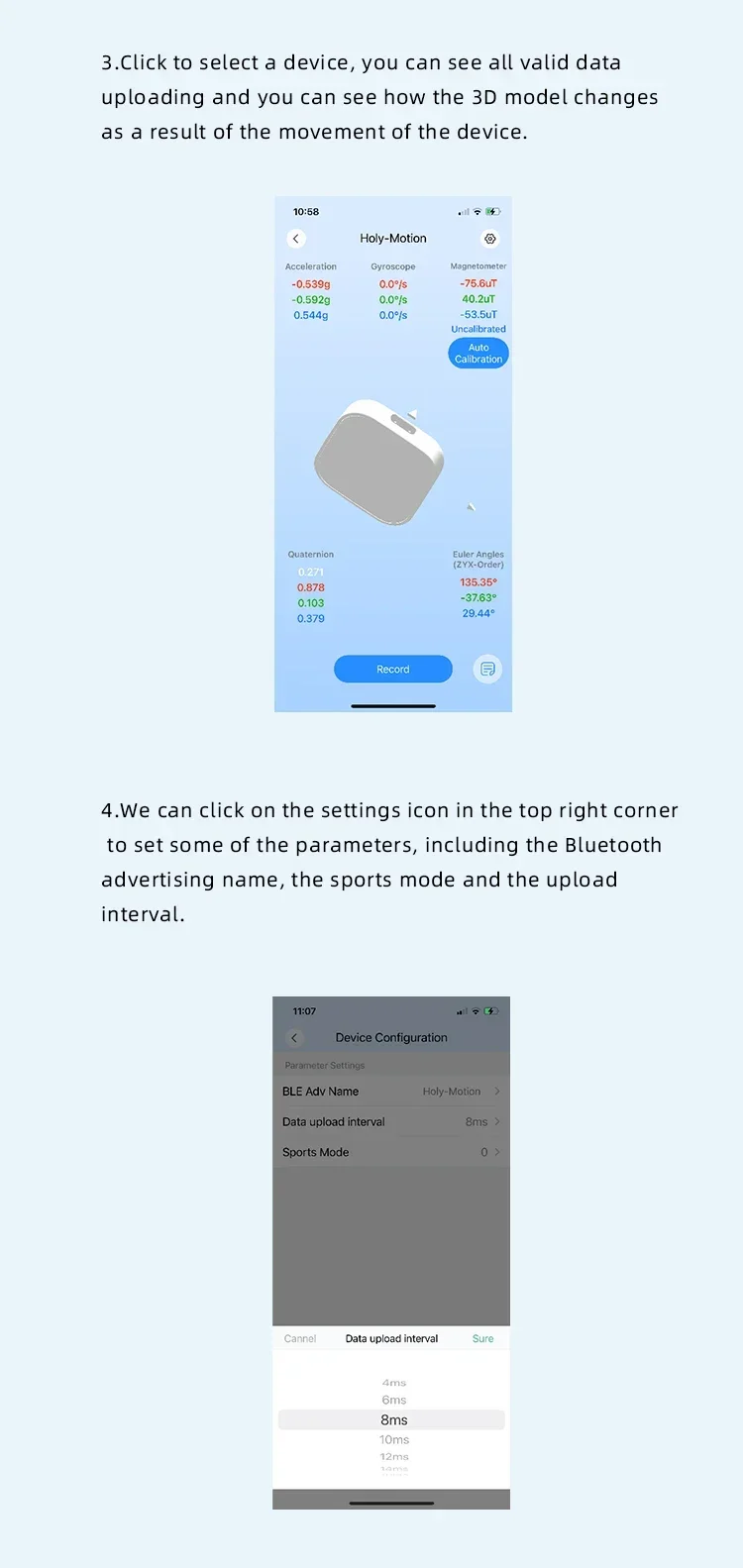

• Real-time display acceleration, gyroscope, magnetometer, quaternion and Euler angle data

• Real-time display of 3D model movement

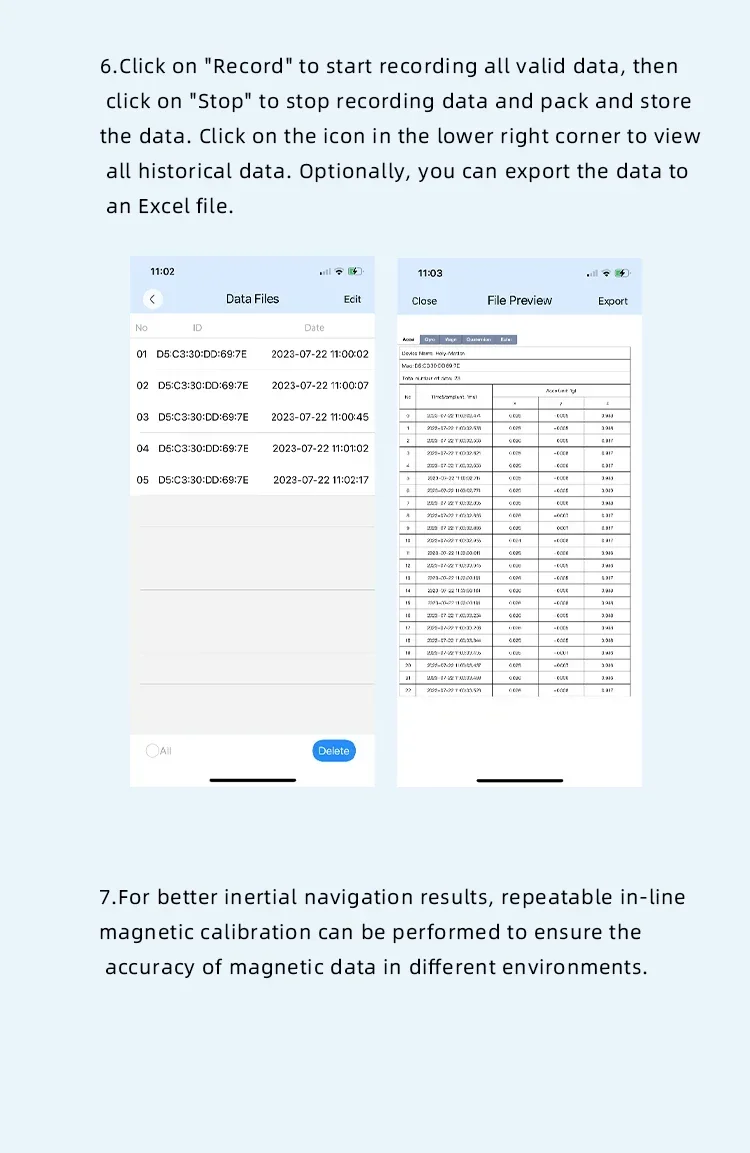

• It can store acceleration, gyroscope, magnetometer, quaternion and Euler angle data and each time stamp

• It can export the recorded data to an Excel file

• LED light indicates the working status

• It can set parameters such as data upload intervals

• Repeatable in-line magnetic calibration for data accuracy in different environments

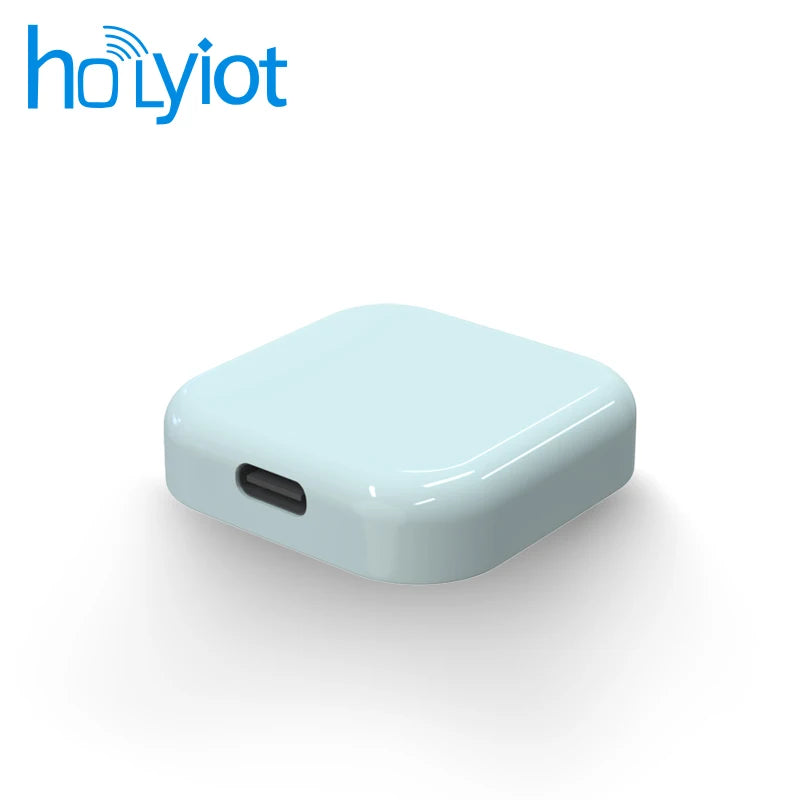

• Type-C port, Li-ion battery charging

Specifications

• 2.4GHz radio frequency band.

• Bluetooth 5.0 protocol standard.

• Configurable data upload rate of 4-1000 ms，Default is 8ms.

• Operating voltage is 3.0-4.2V.

• The content of the recorded data is acceleration, gyroscope, magnetometer, quaternion and Euler angle data of each time stamp.

• Operating temperature range of-20 to +60°C.

• Transmission distances of more than 20 meters in open spaces.

• Acceleration range ±2g for more accurate movement data.

• Magnetometer range is ±800uT.

• Gyroscope range ±2000°/s.

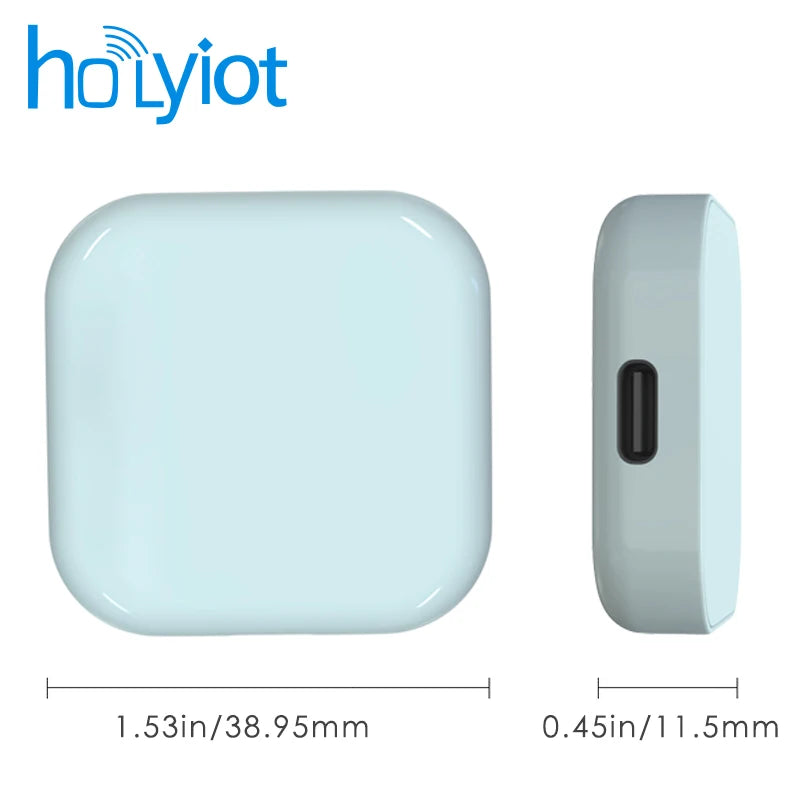

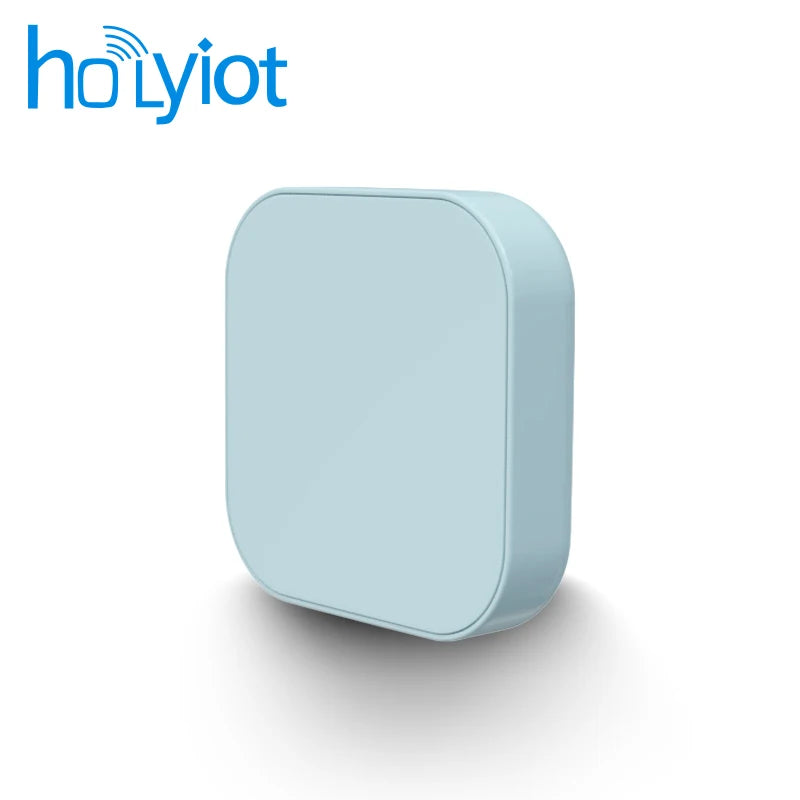

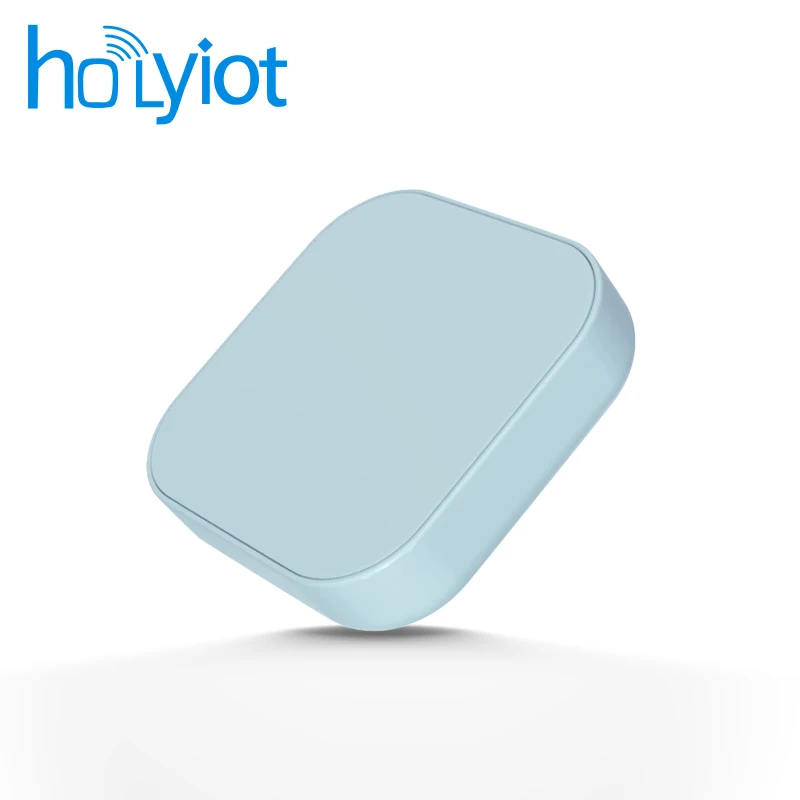

Product View
