Quantity

Value

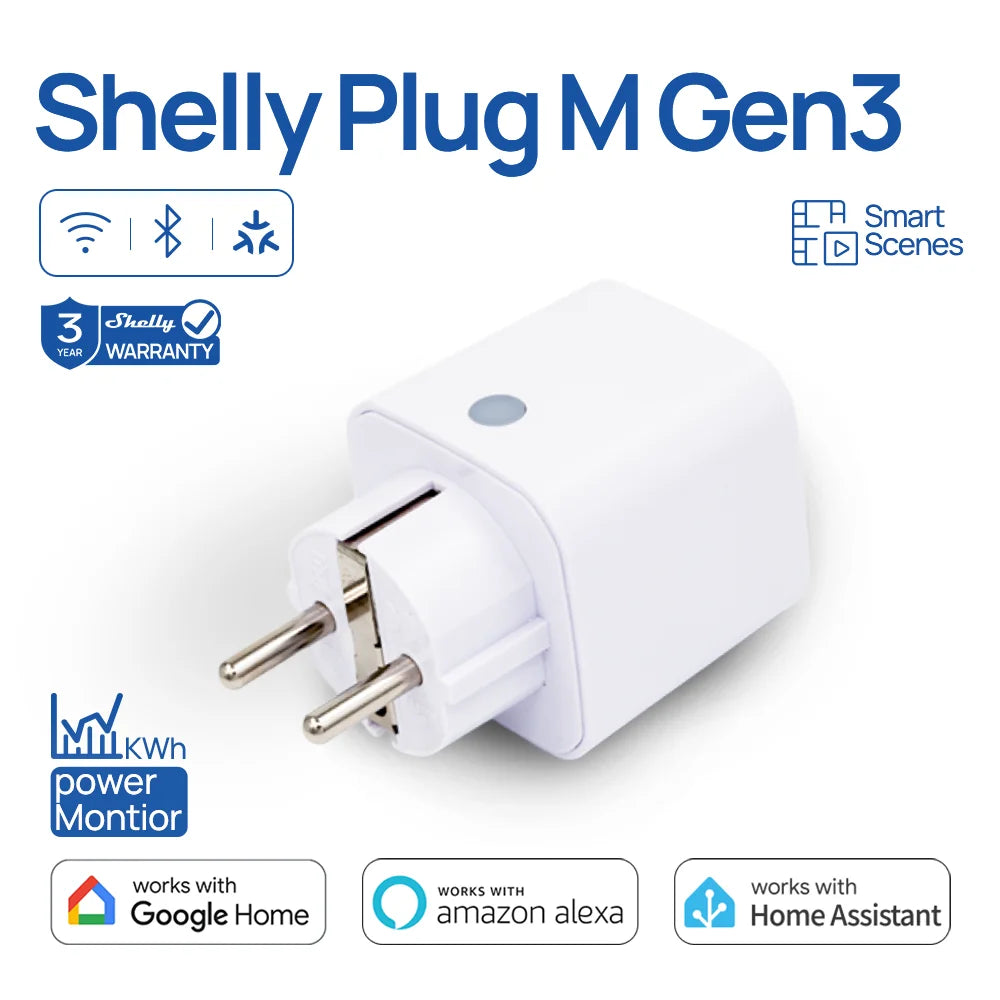

Physical

Size (HxWxD):

46 x 46 x 85 mm / 1.81 x 1.81 x 3.35 in

Weight:

73 g / 2.57 oz

Compatible sockets:

CEE 7/1, CEE 7/3 (Type F / Schuko) or CEE 7/5 (Type E)

Compatible plugs:

CEE 7/2, CEE 7/4 (Type F / Schuko), CEE 7/7, CEE 7/16 (Type C) or CEE 7/17

Shell material:

Plastic

Color:

• White

• Black

Environmental

Ambient temperature:

-20 °C to 40 °C / -5 °F to 105 °F

Humidity

30 % to 70 % RH

Max. altitude

2000 m / 6562 ft

Glow-wire temperature:

750°C

Pollution degree:

2

Required forced cooling:

No

Electrical

Power supply:

220-240 V~ 50 Hz

Power consumption:

< 1 W

Rated impulse-withstand voltage:

2500 V

Output circuits ratings

Max. switching voltage:

240 V~

Max. switching current:

13 A

Max. output power:

3000 W (resistive load only)

Number of switching cycles:

10000

Overvoltage category:

II

Duty-type:

S1

Switch type:

One-way

Switch configuration:

SPNO (single-pole, normally-open)

Type of circuit disconnection:

Micro

Sensors, meters

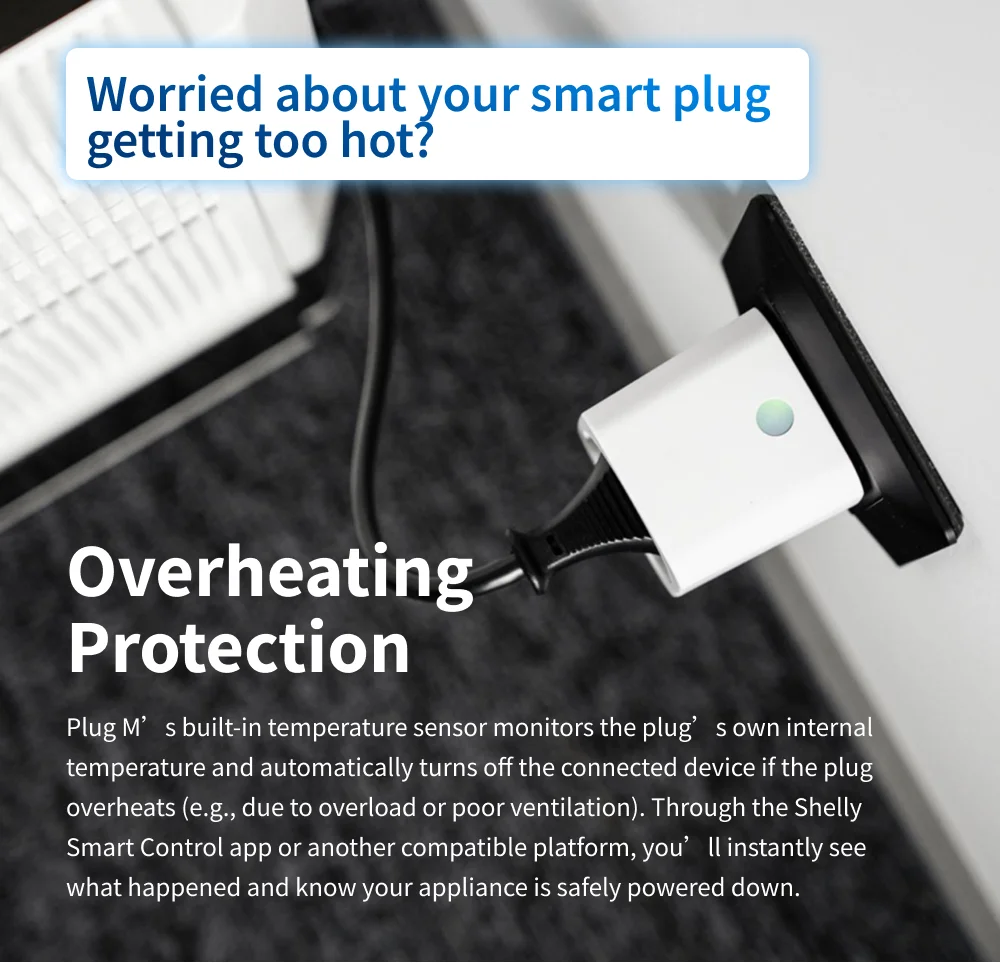

Internal-temperature sensor:

Yes

Voltmeter (AC):

Yes

Ammeter (AC):

Yes

Power and energy meters:

Yes

Radio

Wi-Fi

Protocol:

802.11 b/g/n

RF band:

2412-2484 MHz

Max. RF power:

<10 dBm

Wi-Fi Range:

Bluetooth

Protocol:

4.2

RF band:

2402 - 2480 MHz

Max. RF power:

Range:

Up to 30 m / 98 ft outdoors, up to 10 m / 33 ft indoors (depending on local conditions)

Microcontroller unit

CPU:

ESP-Shelly-C38F

Flash:

8 MB

Firmware capabilities

Webhooks (URL actions):

20 with 5 URLs per hook

Scripting:

Yes

MQTT:

Yes

CoAP:

No
